FWW206
FWW206 2ft.png
FWW206 4ft.pngFWW206

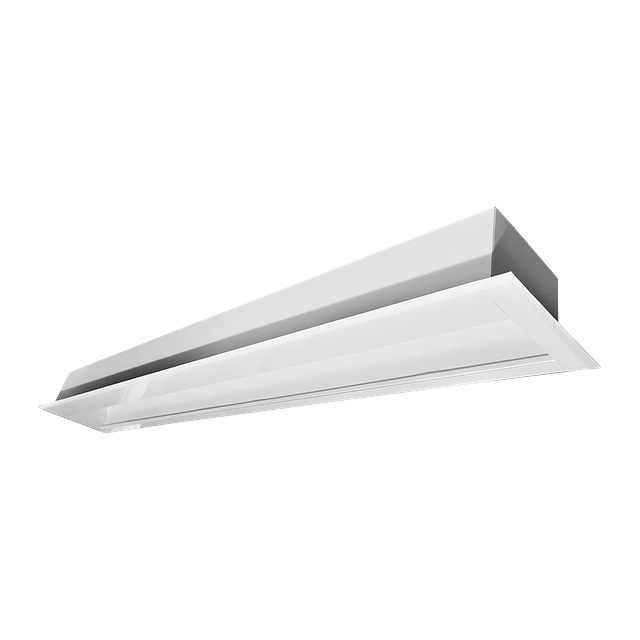

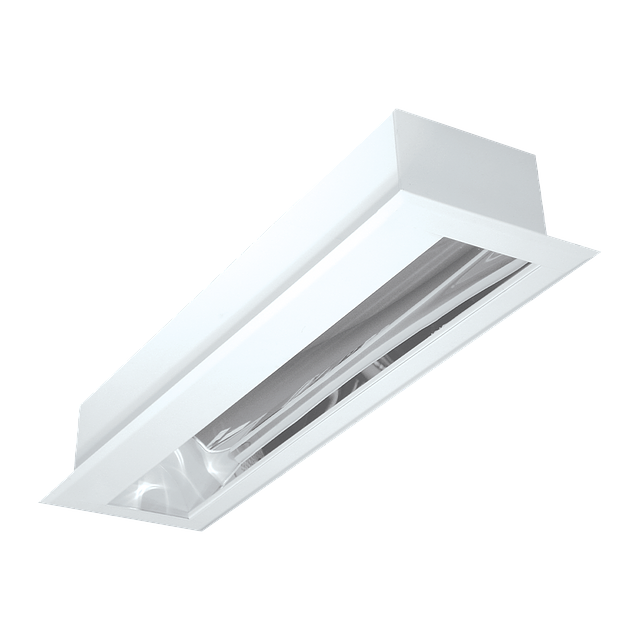

6" Wide Flanged Wall Wash Luminaire
The FWW206 6” Wide Recessed Flanged Wall Wash Luminaire combines advanced performance with versatile design, ideal for architectural and commercial settings. Built in America and meeting BABA & BAA compliance, it features a durable cold rolled steel housing and a high-reflectance white finish for optimal illumination. The standard 0-10V dimming driver and support for California Title 24 compliance ensure energy-efficient operation. With options like tunable white (2700K–6500K), emergency battery packs, and continuous row mounting, the FWW206 adapts to diverse project needs. UL listed for damp locations and backed by up to a 10-year warranty, it ensures reliability and exceptional longevity.
The FWW206 6” Wide Recessed Flanged Wall Wash Luminaire combines advanced performance with versatile design, ideal for architectural and commercial settings. Built in America and meeting BABA & BAA compliance, it features a durable cold rolled steel housing and a high-reflectance white finish for optimal illumination. The standard 0-10V dimming driver and support for California Title 24 compliance ensure energy-efficient operation. With options like tunable white (2700K–6500K), emergency battery packs, and continuous row mounting, the FWW206 adapts to diverse project needs. UL listed for damp locations and backed by up to a 10-year warranty, it ensures reliability and exceptional longevity.
Construction
- 22 ga. cold rolled steel housing
- 18 ga. one-piece welded trim flange
- High reflectance low gloss white reflector
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
Features
- Made in America, BABA & BAA Compliant
- 0-10V dimming driver standard
- Supports California Title 24 compliance
Options
- Controls
- Flexible Conduit
- Continuous row mounting
- 20 ga. cold rolled steel housing
- Hanger yokes
- Tunable white (2700K – 6500K)
- Emergency battery pack
- Customization available upon request
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Resources
Construction
- 22 ga. cold rolled steel housing
- 18 ga. one-piece welded trim flange
- High reflectance low gloss white reflector
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
Features
- Made in America, BABA & BAA Compliant
- 0-10V dimming driver standard
- Supports California Title 24 compliance
Options
- Controls
- Flexible Conduit
- Continuous row mounting
- 20 ga. cold rolled steel housing
- Hanger yokes
- Tunable white (2700K – 6500K)
- Emergency battery pack
- Customization available upon request
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Availability
- Quick Ship
Lamp Source
- Fluorescent
- LED
- LED Tube
Lumens
- 1000
- 16000
Dimming Protocol
- 0-10 V
- D4i
- DALI
- DMX
- Forward Phase
- Lutron
- Step-Dimming
- Two Wire
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- Damp
- Made in America
- Title 24
CRI
- 80
- 90
Color / Finish
- Anti-Microbial
- Black
- Bronze
- Camaro Silver
- Custom
- Painted After Fabrication
- Red
- White
Controls Options
- High Frequency Microwave
- Passive Infrared
- Photocell
- Ultrasonic
- Wireless Control
Dimensions
- L: 24 In. W: 6 In. H: 4.25 In.
- L: 48 In. W: 6 In. H: 4.25 In.
CCT
- Amber
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
Dimming Range
- 1%
- 10%
- 5%
Distribution
- Wall Wash
Dynamic LED Color
- RGBW
- Tunable White
Efficacy
- 74.9
Emergency Options
- Battery Pack
- External Line Fuse
- Generator Transfer Device
- Inverter
- Surge Protector
Lamp Base
- FA8
- G13
- G5
- R17D
Lamp Life
- 50000
Listings
- UL
Materials
- Steel
Mounting
- Flange
- Recessed
Static LED Color
- Blue
- Green
- Red
Voltage
- 120 V
- 120-277 V
- 120-347 V
- 347 V
- 480 V
- UNV
Warranty
- 5 yr
- 10 yr
